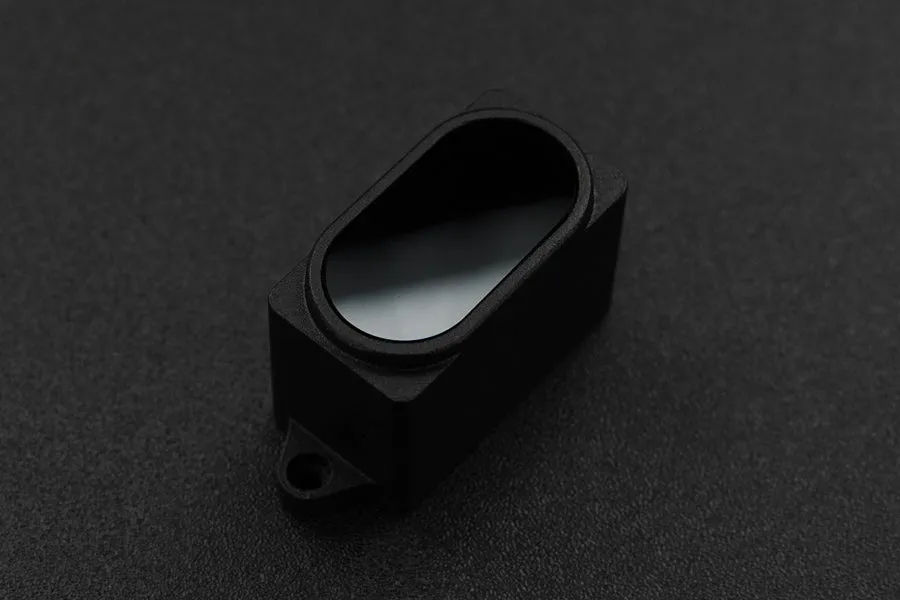

SDM15 ToF Single-Point Ranging LiDAR Sensor
SDM15 ToF Single-Point Ranging LiDAR Sensor
Title:
  • Localstock
  • Overseasstock

$ 66.03

$ 66.03

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

The laser transmitter emits laser light at time t1. The laser collector collects the reflected laser distance at time t2 = (t2-t1)*light speed/2, because t2-t1 is the round-trip time from laser emission to reception.


SDM15 distance of 15 meters, making it capable of laser ranging in most indoor scenes.


Sampling frequency 10Hz~ 1800Hz adjustable.


It can resist the strong light environment of 60klux and realize high-frequency and high-precision distance measurement indoors and outdoors.


Fully compatible with ROS1 and ROS2 systems,providing two system SDK, and providing technical information.


The infrared linear array pulsed laser used in SDM15 can ensure the safety of humans and pets. Meets FDA Class 1 laser safety standards.


It weighs only 15 grams, making it easy to install. It consumes less than 0.5W .In scenarios where battery-powered or low power consumption is required, it provides stable, precise, and highly sensitive distance measurements. Can be used for applications such as altitude control and terrain following in unmanned drones, obstacle avoidance in robots, and smart home systems.

SDM15 Product Dimension Diagram

Features:

  • Measurement range indoors and outdoors extends up to 15m.
  • Small blind zone of 50mm.
  • Measurement frequency is adjustable, ranging from 1-18000Hz.
  • Long Lifespan, 10000 hours.
  • Applications:

  • Altitude control and terrain following in unmanned drones
  • Obstacle avoidance in robots
  • Smart home systems.
  • Specification:

  • Measurement range: 0.05~15m (80% reflectivity indoors and outdoors)
  • Measurement accuracy: ±2cm @ 2m, ±3% @ 2-15m
  • Operating voltage: 4.8-5.2V
  • Power consumption: 100mA @ 5V
  • Communication interface: UART
  • Wavelength: 905nm
  • Measurement frequency: Adjustable from 10-1800Hz
  • Ambient light immunity: 60klux
  • Operating temperature: -10°C~50°C
  • Storage temperature: -20°C~70°C
  • Lifespan: 10000 hours
  • Weight: 15g
  • Documents:

  • Product Includes:

  • SDM15 ToF Single-Point Ranging LiDAR Sensor (0.05-15m) x1
