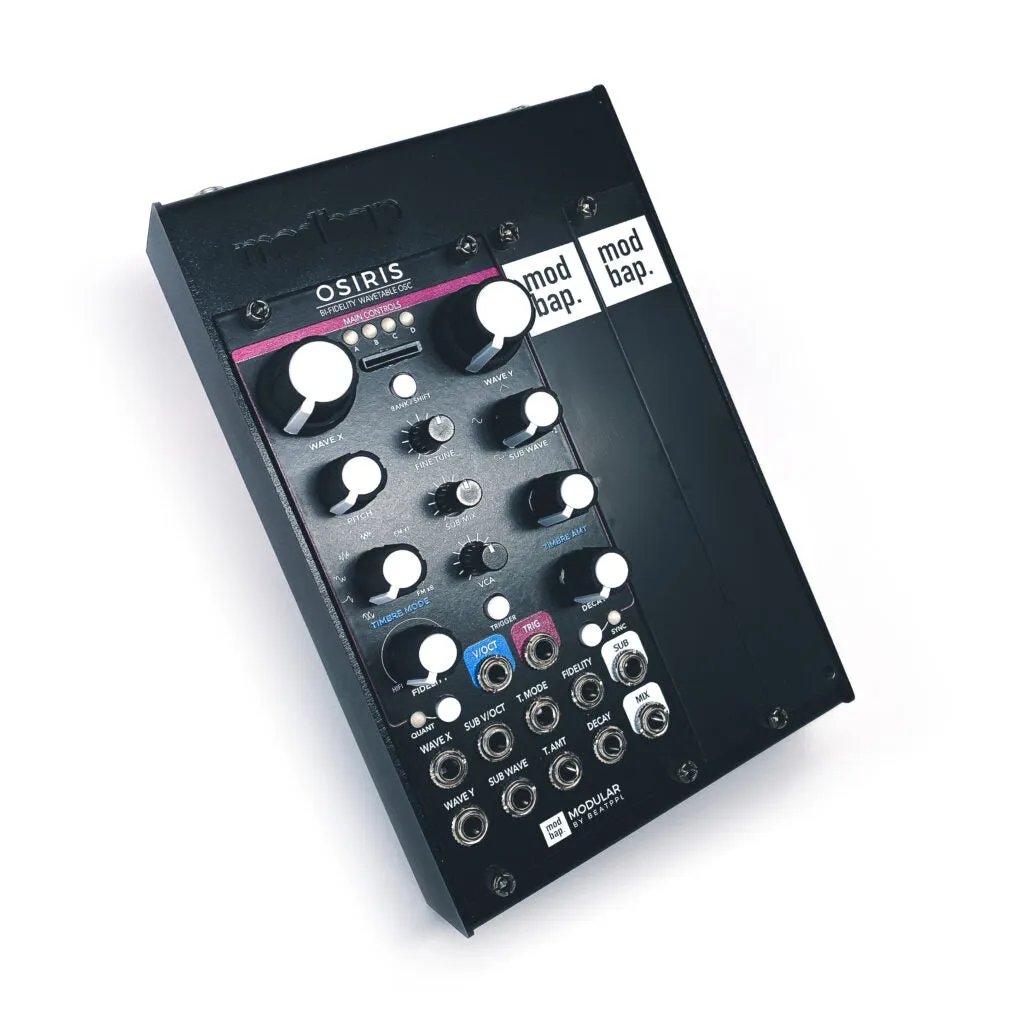

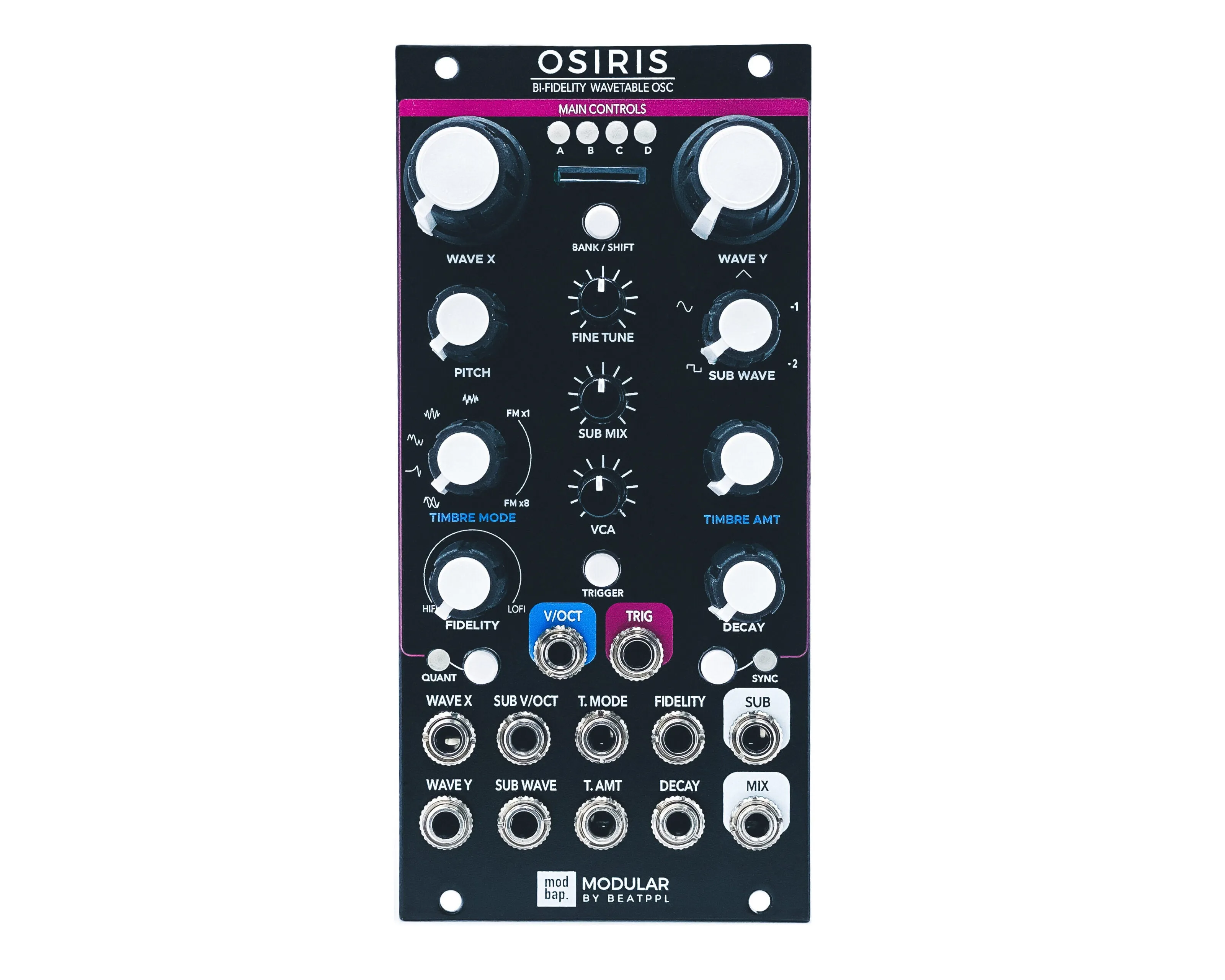

Osiris is a 12hp bi-fidelity wavetable oscillator with 4 banks of 32×32 wavetables each (128 wavetables in total). Each wavetable has 32 waveforms at 256 samples per waveform.
Osiris is designed to be used as a powerful bi-fidelity wavetable oscillator with an added sub-oscillator. The sub-oscillator has its own v/oct, mix knob, and mono output. If the sub-oscillator output is not patched, the sub-oscillator output is normalised to the mix out. Essentially, the sub-oscillator can act as its own independent oscillator allowing Osiris to be utilised as two separate oscillators.
The Sub Wave allows for the selection of the sub oscillator’s waveform. The waveforms are – Square, Sine, Triangle, -1, -2, offering basic waves at a lower frequency than the main oscillator that add weight to the main oscillator. -1 and -2 represent a copy of the wavetable at 1 octave below and 2 octaves below the main oscillator, respectively.
The built-in VCA and decay parameters allow for wide-open melodic fades as well as easy percussive plucks.
Timbre Modes are a set of selectable forms of waveshaping that vastly expand Osiris’ range in sound possibilities. All of the Timbre Modes live on one CV-enabled knob, allowing for smooth morphing between modes which makes for some very cool blended timbres between modes. Timbre Amount allows for dialing in as much or as little of the selected timbre as desired.
Video:
Product Specs
- Item Number: 20942
- Make:
- Model:
- Condition:
- Finish: Black
- Categories: ⇒
- Function:
- Made In: United States
- MPN: MM-OSI-01
- Modular Grid: Eurorack
- Dimensions*: 12 HP 28 mm deep
- Power*: 50 mA 12V 50 mA -12V 0 mA 5V
* User contributed details
